Textile Circuitry Kit

Textile Circuitry Kit

Regular price $499.00 USD
Regular price Sale price $499.00 USD
Sale Sold out
Explore moving beyond traditional cabling; replace rigid copper core cabling with fabric connectors. Cables maybe connected by soldering terminating ends or by crimp-on connector. All conductive yarn copper based and can be fastened like traditional cables This box contains a variety of cables, including high speed data cables that can transfer 4K signals up to 5Gbps. Each cable Profile and characteristic sheet can be found in the attached specification sheet. Please note that while two cables maybe visually identical, will contain different profile characteristics.

Shipping Details

Allow 7-14 days for shipping. If you require express shipping, do contact us.
This product has shipping restrictions to Australia and the UK.

Learn More

Terms and Conditions

Customers are responsible for additional customs fees, duties and tax

Learn More
View full details

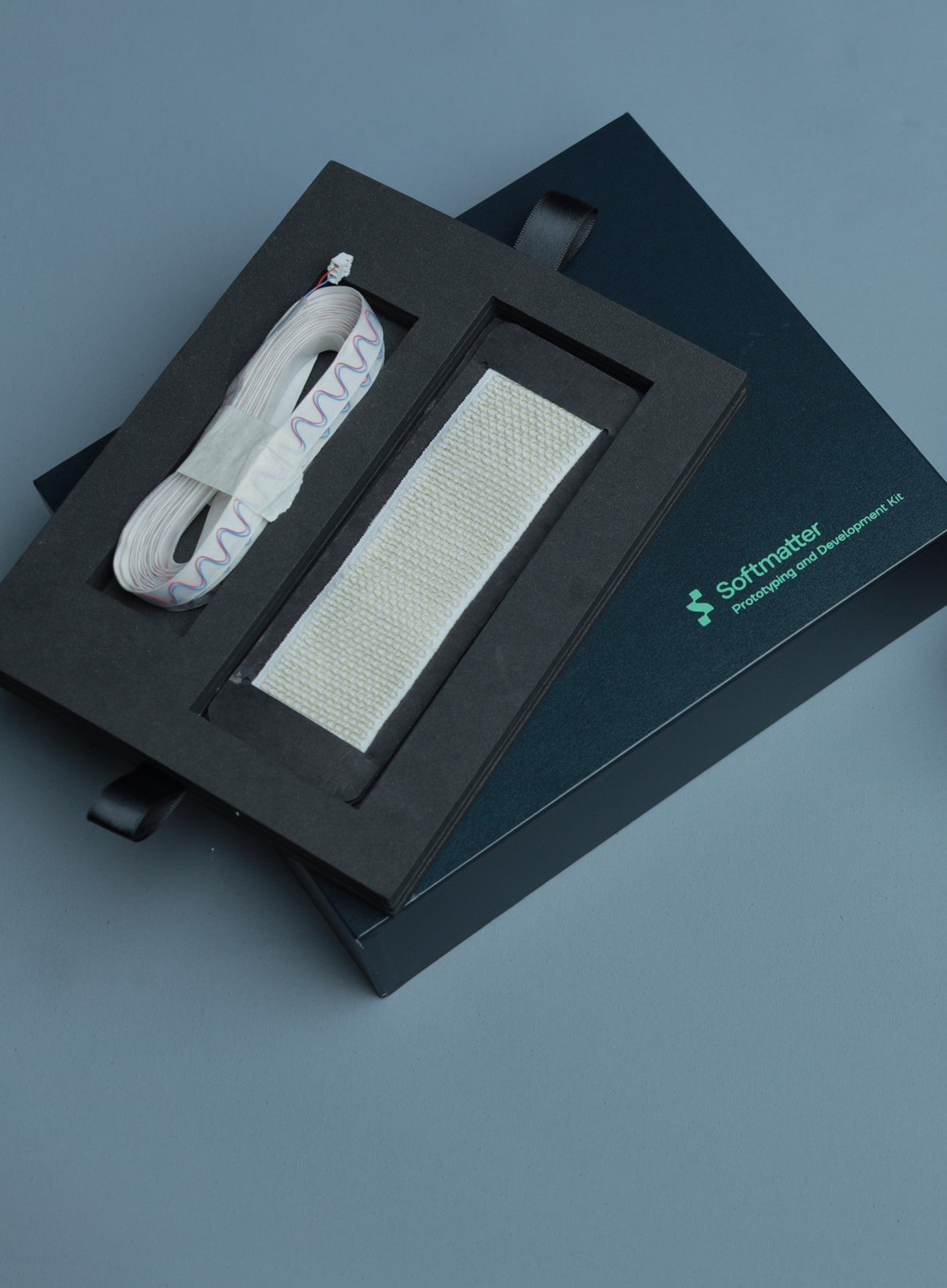

What’s in the Kit?

Components Qty
High Speed data cable 2
3m conductive pathway with JST connectors 1
Mechanical connectors 2
Snap connectors 2
USB A connector (male - female) 1
USB C connector (male - female) 1

Technical Specifications and Test Instructions of the Components

[1]

Tech Specfications:

Parameter Conductive Woven Conductive Knitted Silicone
AC Impedance 9.7Ω (+/- 0.5Ω) 12.3Ω (+/- 0.5Ω) 608Ω (+/- 5Ω)
DC Offset Voltage 2.0mV (+/- 0.2mV) 2.0mV (+/- 0.2mV) 0.8mV (+/- 0.2mV)
Impedance after SDR 9.7Ω (+/- 0.5Ω) 12.3Ω (+/- 0.5Ω) 288Ω (+/- 5Ω)
Bias Current Tolerance 0.2mV (+/- 0.1mV) 0.2mV (+/- 0.1mV) 0.3mV (+/- 0.1mV)
Combined Offset Instability and Internal Noise 42.9uvpp (+/- 5uvpp) 49.3uvpp (+/- 5uvpp) 142uvpp (+/- 10uvpp)

Operating instructions

Download Instruction Manual, connection diagrams and code samples
